Metal paints on the rotary engine

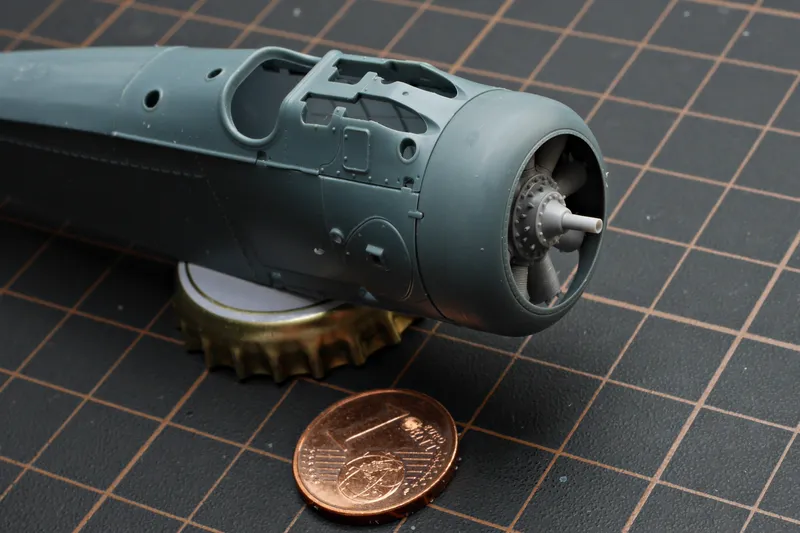

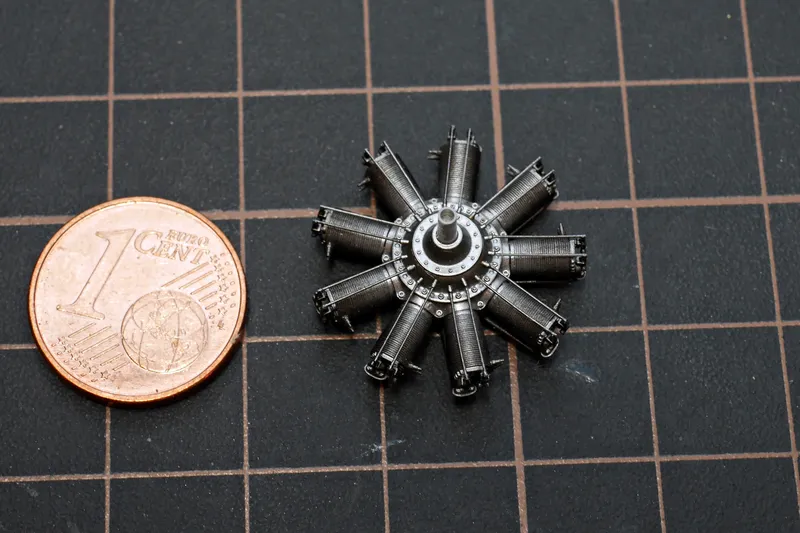

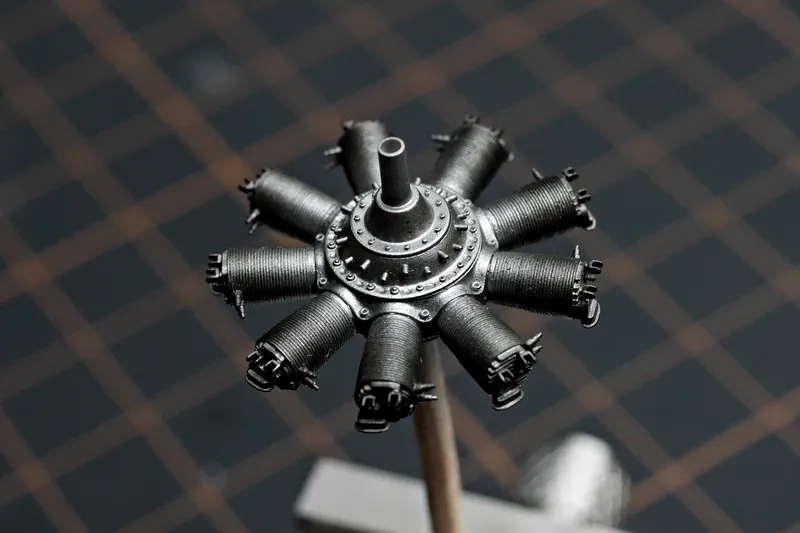

Pic 1 The result of this update :) So the first picture is the last one

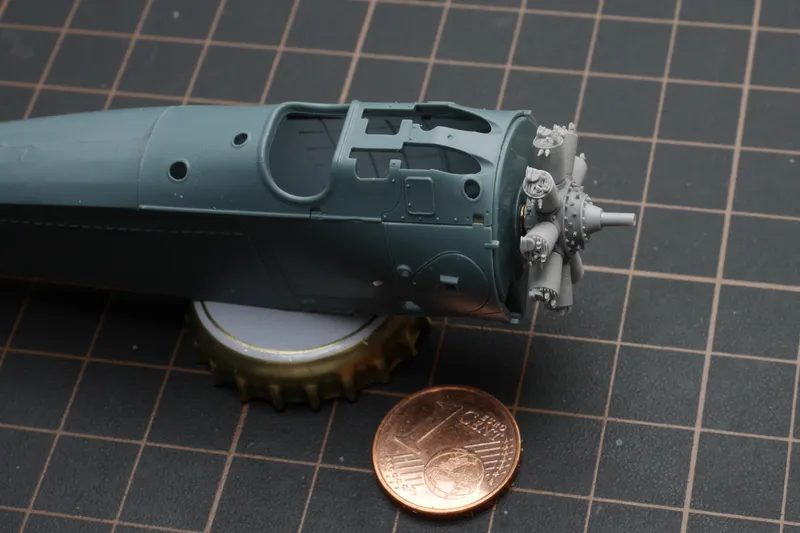

Pic 2 Dry fit of the engine - as expected it does not fit below the cowling with cylinders applied. The Small Stuff engines are in scale, the outer diameter of the cowling too. But the plastic is much to thick compared to the thin alu sheet of the real Camel

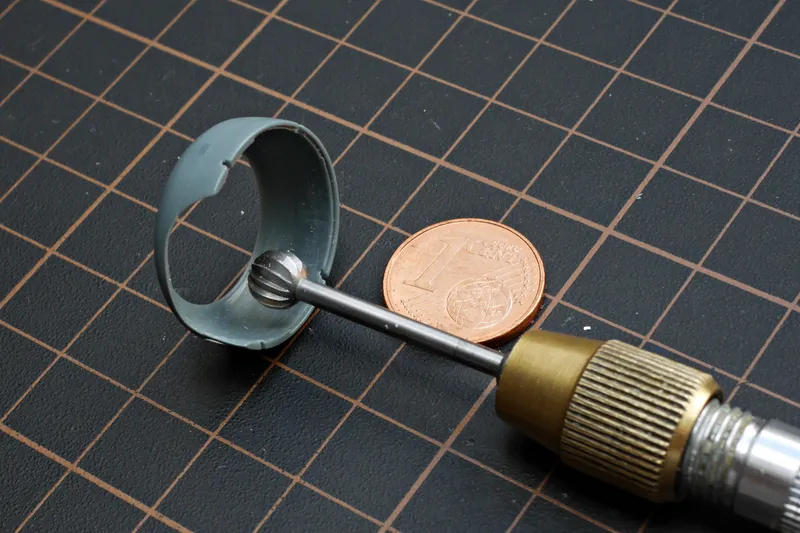

Pic 3 So I made the cowling thinner - by hand, to have more control.
Pic 4 It fits for now but I'm not sure if it is enough with valve lever and push rods
Pic 5 Now it was time to paint the engine with different Alclad paints.

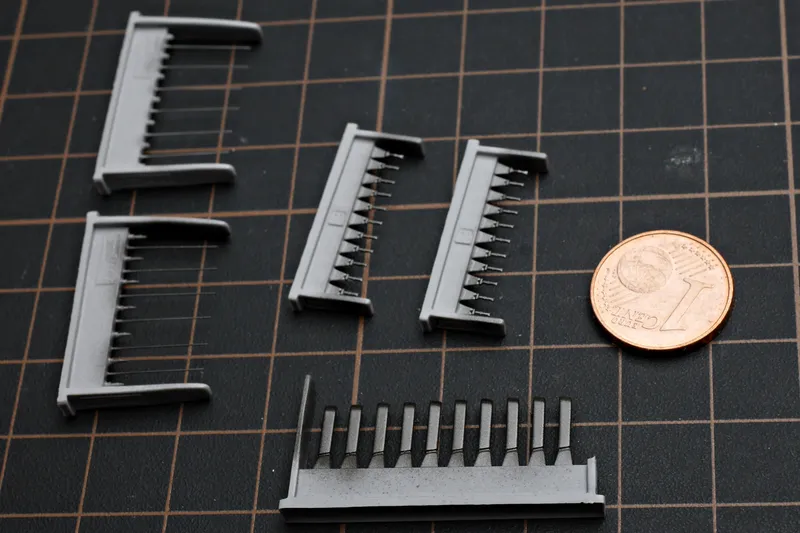

Pic 6 And also the little parts are painted in different metal shades as preparation for the mounting process.

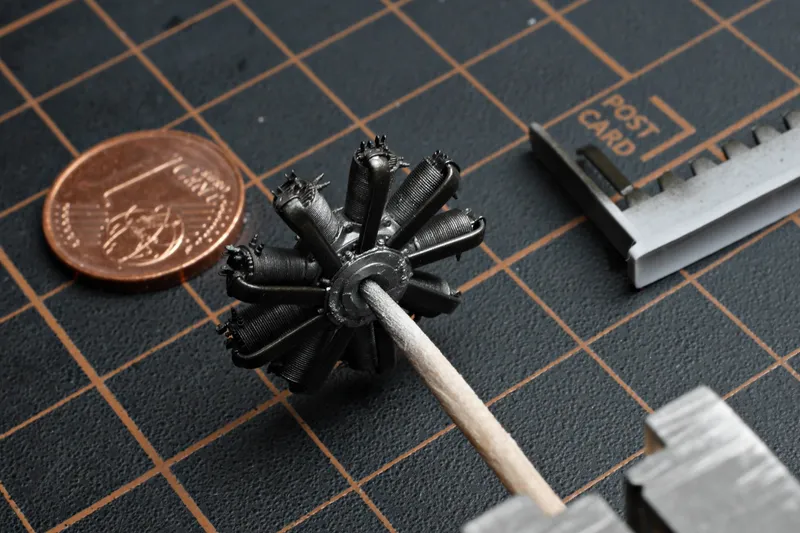

Pic 7 The intakes pipes are added to the back of the engine

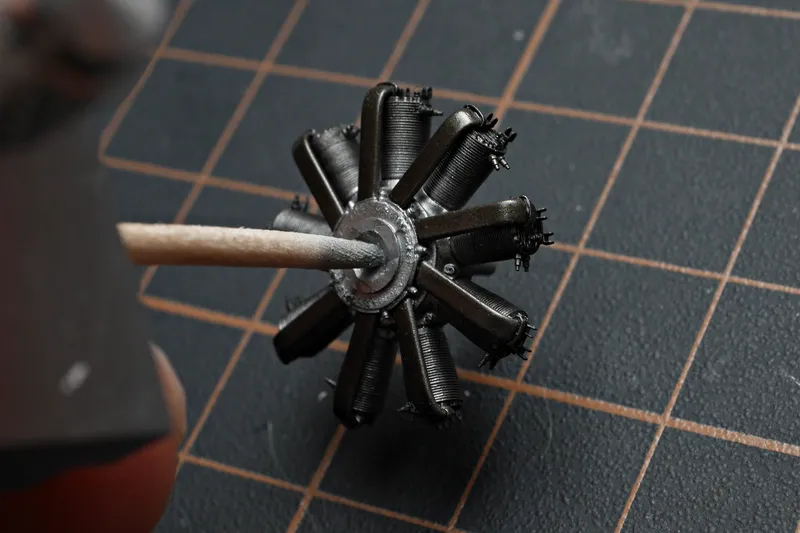

Pic 8 secured with CA. The different shade is nice

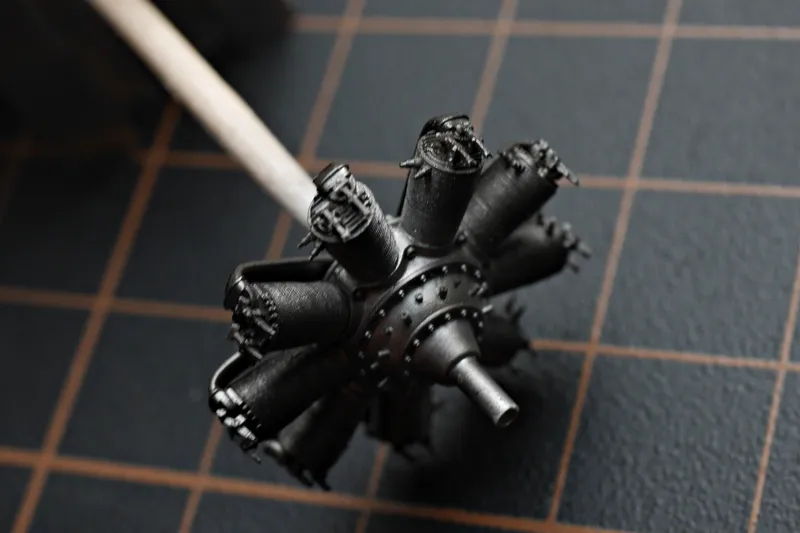

Pic 9 The valve rockers are added. Those are damn small parts!

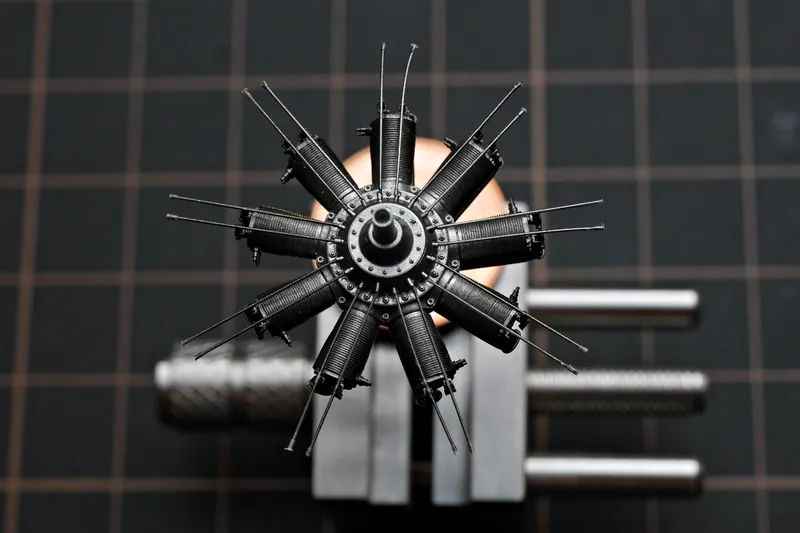

Pic 10 The push rods (0.15mm thick and made from resin) are applied between casing and rockers.
